PhoenixTM Exposed Junction Thermocouple (7 x 0.2mm) l สายวัดอุณหภูมิชนิดปลายเปลือย

PhoenixTM Exposed Junction Thermocouple (7 x 0.2mm) l สายวัดอุณหภูมิชนิดปลายเปลือย

In thru-process temperature profiling the quality, and therefore value, of the profile data is greatly influenced on the ability to locate repeatedly the thermocouple tip at exactly where the measurement is required from product to product and run to run. For this reason, as products and applications vary PhoenixTM offer a comprehensive range of thermocouple designs. The design of the thermocouple and materials used in their construction are matched to the demands of the application. Whether needing a needle thermocouple to insert accurately into the core of a chicken portion or thermocouple that can be attached quickly yet reliably to the surface of a painted car body shell PhoenixTM can offer a solution.

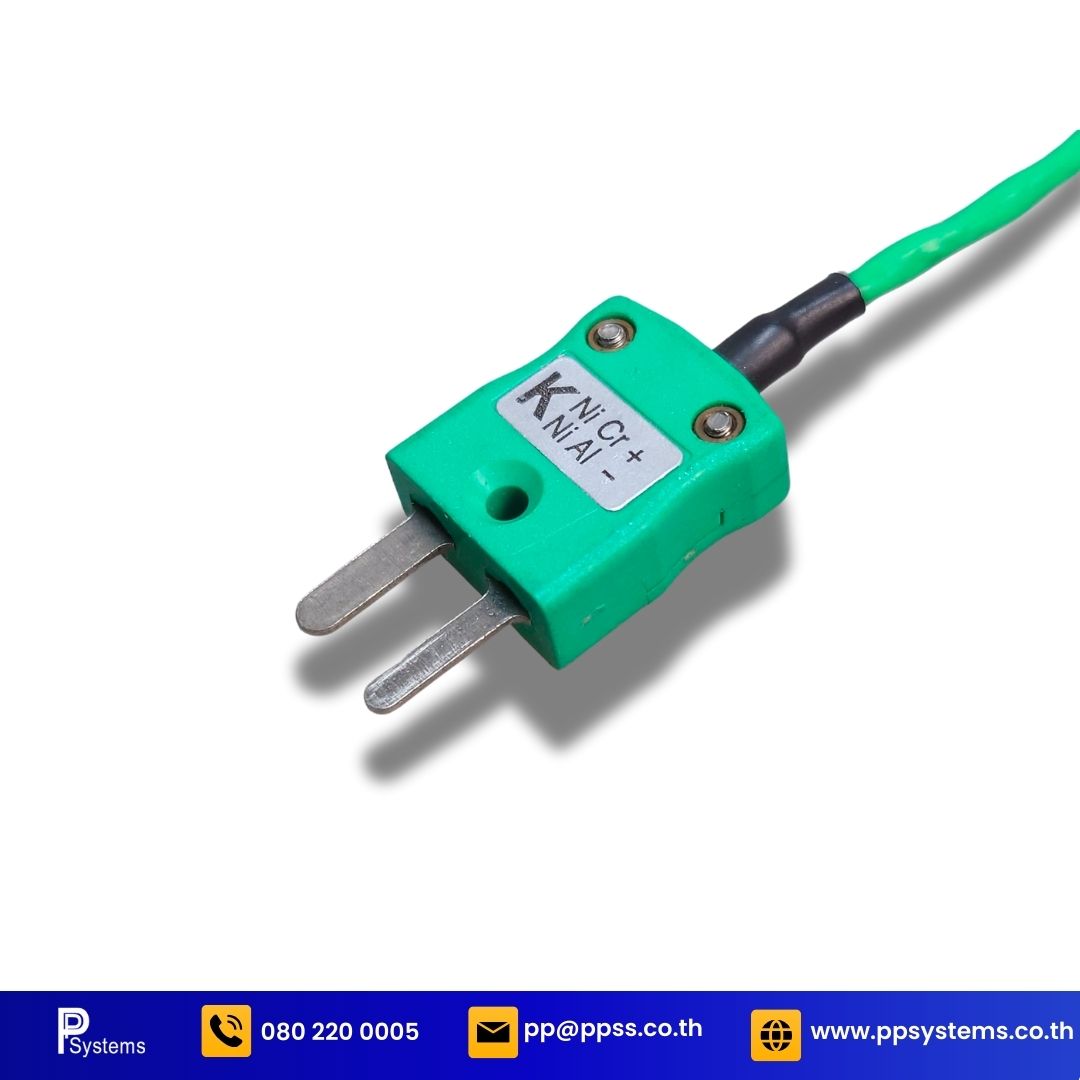

All Phoenix TM type K thermocouples are manufactured to the highest quality standards and conform to the ANSI MC96.1 special limits specification. The insulation material and the plug terminations are colour coded to conform to the IEC 60584 standard.

__________________________________

Finishing Thermocouples

For low temperature Finishing applications (up to 250°C) such as paint and powder coat curing in the finishing industry, various types of thermocouples are available for either Air or Surface measurement.

The thermocouple construction is designed to withstand rough handling, the type K, PTFE insulated wires are triple wrapped with stainless steel braid, and have a final overall PTFE insulation.

Thermocouples for the finishing industry have a unique design of removable sensor (magnetic and clamp) so that when the insulated cable wears, it can be replaced without the need to buy a complete assembly. This results in significant consumable savings.

Feature benefits:
Accurate - ANSI MC96.1 ‘Special Limits’ specification (type K), Accuracy +/- 1.1 °C or +/0.4% Temperature reading *

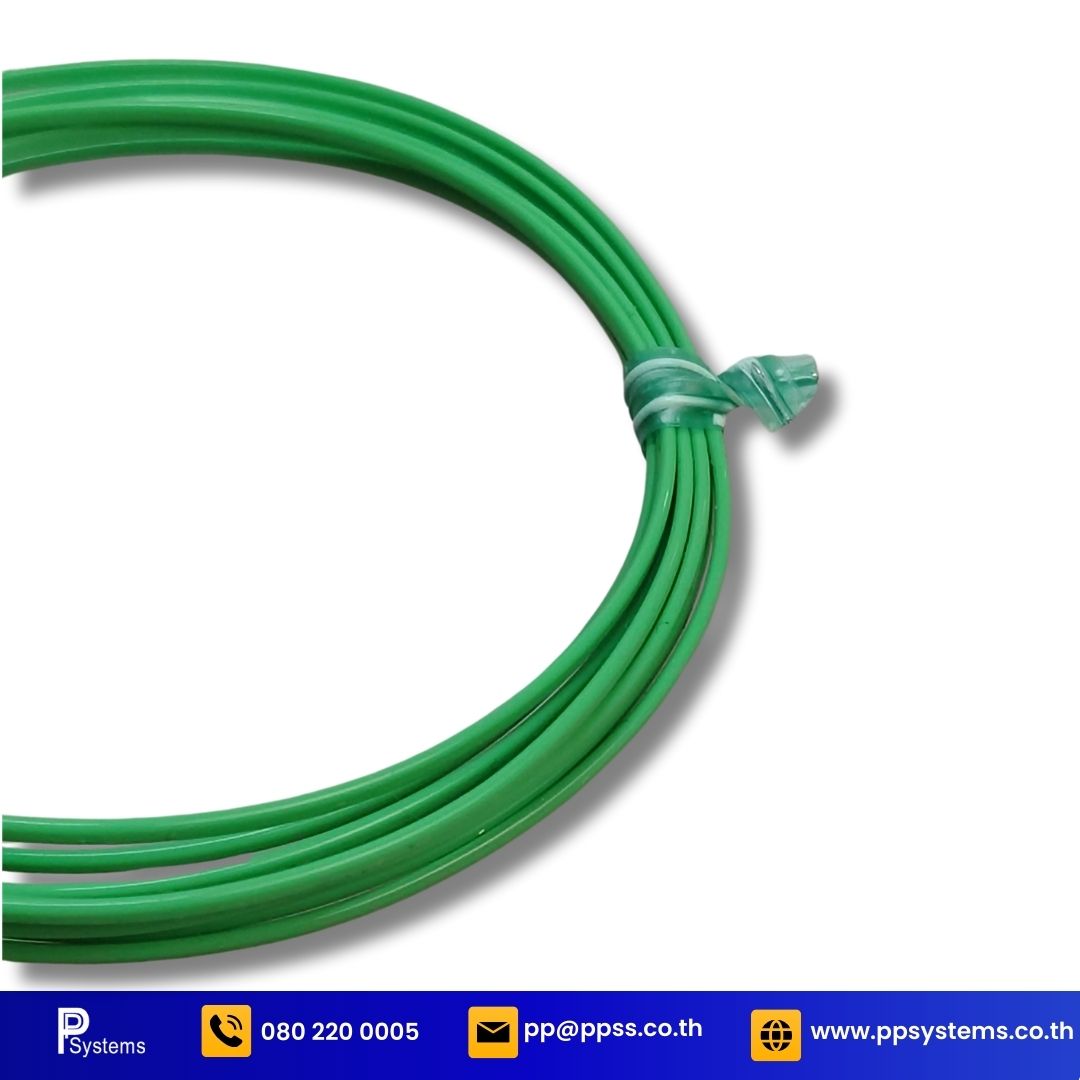

Robust - PTFE Cable 7 Strand x 0.2 mm triple wrapped insulation, stainless steel braid, and outer PTFE insulation
Choice – Different thermocouple fixing methods and cable lengths to suit
Value - Replaceable thermocouple cable, reducing thermocouple replacement costs for clamp and magnetic thermocouples (* whichever is greater)

__________________________________

Finishing Thermocouple Range

SKU	Figure	Description	PDF datasheet
TC50/TC51		Magnetic Probes (TC50/TC51) Ferrous substrates such as Car Body Shells. Available for surface or air measurement.	Download
TC60		MiniMag Magnetic Probe (TC60) Ferrous substrates such as Car Body Shells – Surface Measurement.	Download
TC52/TC53		Clamp Probes (TC52/TC53) General paint powder applications where product is non ferrous (eg: Aluminium extrusion). Available for surface or air measurement.	Download
TC59		Long Reach Clamp (TC59) Monitoring Aluminum body panels (Door, Hood, Roof).	Download
TC56		Washer (TC56) Permanently screwed to test body shell for routine repeat testing.	Download

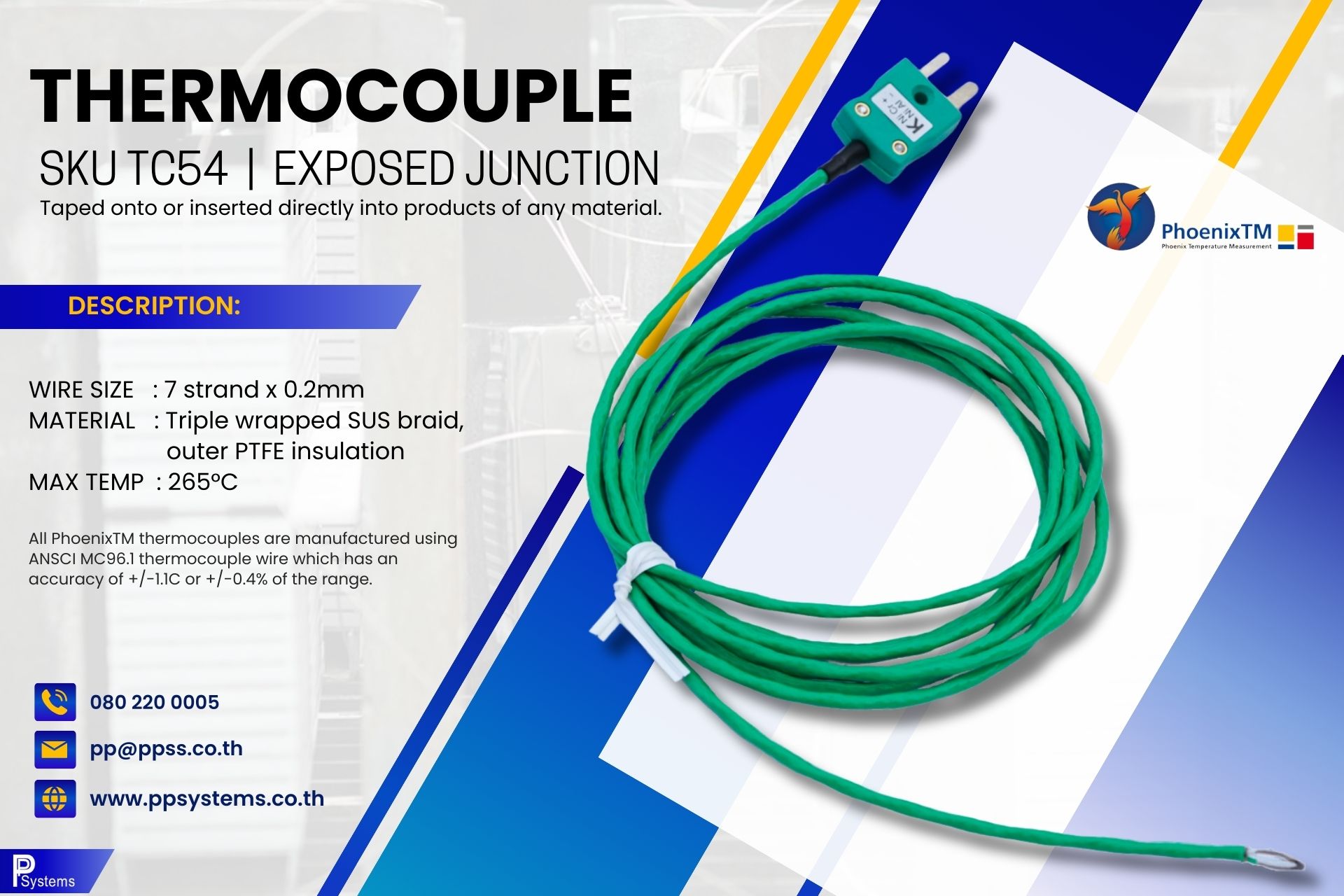

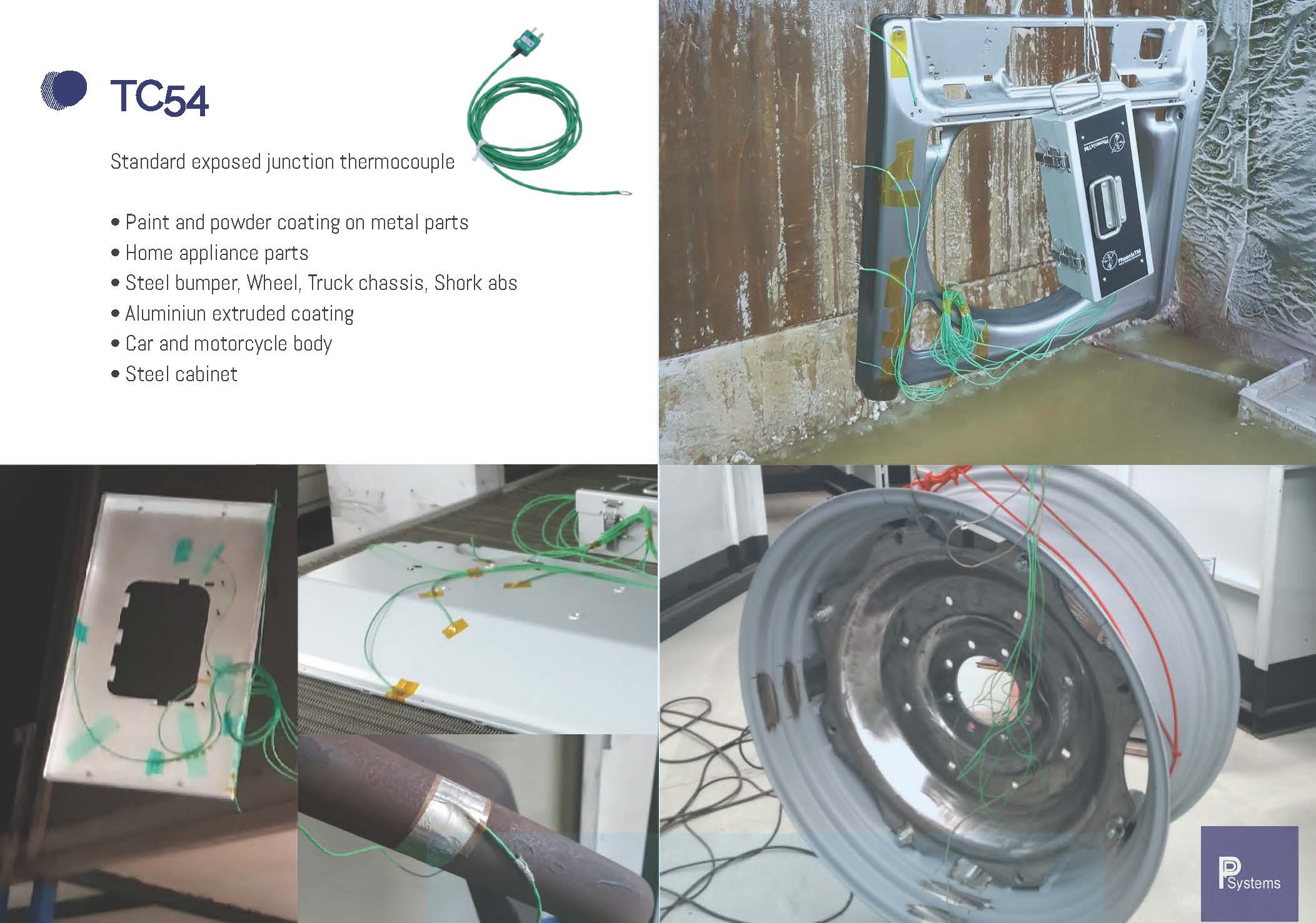

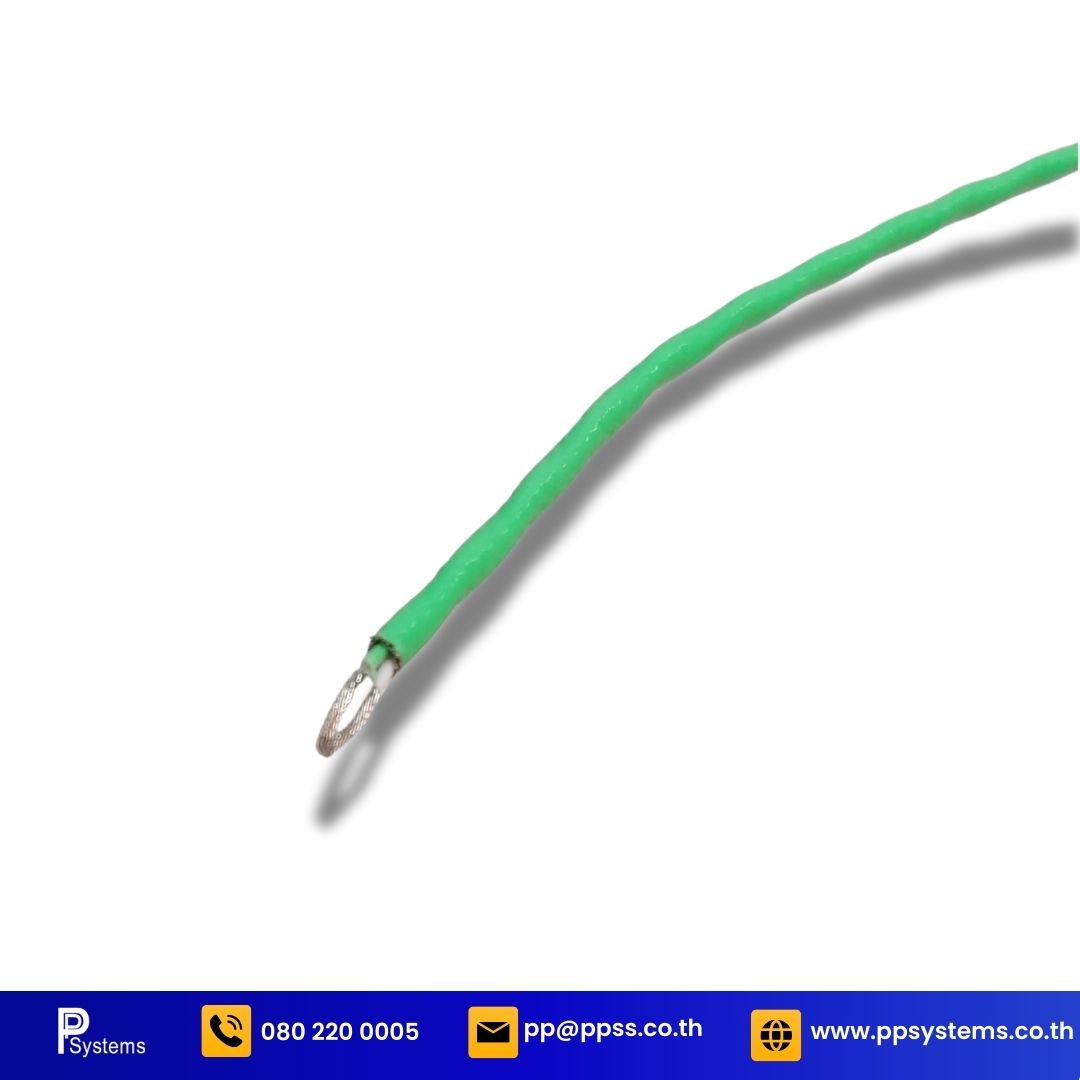

TC54		Exposed junction (TC54) Taped onto or inserted directly into products of any material.	Download
TC55		Adhesive exposed junction (TC55) Idea for low thermal mass products (plastics). Self-Adhesive.	Download
TC80		Round adhesive exposed junction (TC80) Idea for low thermal mass products (can). Self-Adhesive.	Download
TC64		High Temperature Exposed Junction (TC64) Operate up to 500 °C ideal for high temp PTFE or high temp coating cure monitoring. Recommended for use in infrared radiation process heat.	Download

 __________________________________

ข้อมูลทางเทคนิค

All PhoenixTM thermocouples are manufactured using ANSCI MC96.1 Special Limit Error thermocouple wire which has an accuracy of +/-1.1C or +/-0.4% of the range.

__________________________________

ดาวน์โหลด

แคตตาล็อกสินค้า Thermocouple Automotive : Download Here
แคตตาล็อกสินค้า Thermocouple Oven (Minimag) : Download Here
แคตตาล็อกสินค้า Thermocouple Food : Download Here
แคตตาล็อกสินค้า Thermocouple Furnace (FG) : Download Here
แคตตาล็อกสินค้า Thermocouple Furnace (MI) : Download Here
