DF Series x MFB Gas Burner l หัวเตาอินฟาเรดแก๊สเปลวไฟสองหน้า - สำหรับอุ่นร้อนโมลด์การหล่ออลูมิเนียม

     Gas heating offers higher heat output, versatility for larger molds, and wider range of materials. Electric heating provides precise temperature control, energy efficiency, and enhanced safety. The choice between gas and electric heating depends on factors such as the specific requirements of the casting process, mold size, available infrastructure, and energy costs.

     PYROprecision offers surface combustion technologies that provide customers with three different flame configurations: IR-RED ® FLAME, PUR-BLUE ® FLAME, and HYBRID ® FLAME. These configurations can be custom designed to meet the specific requirements of each customer's equipment.

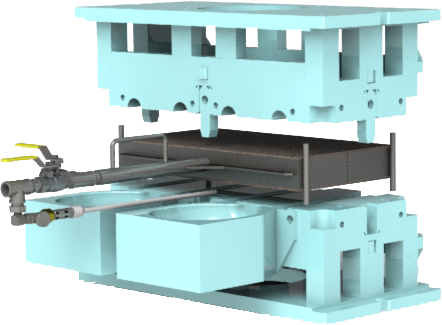

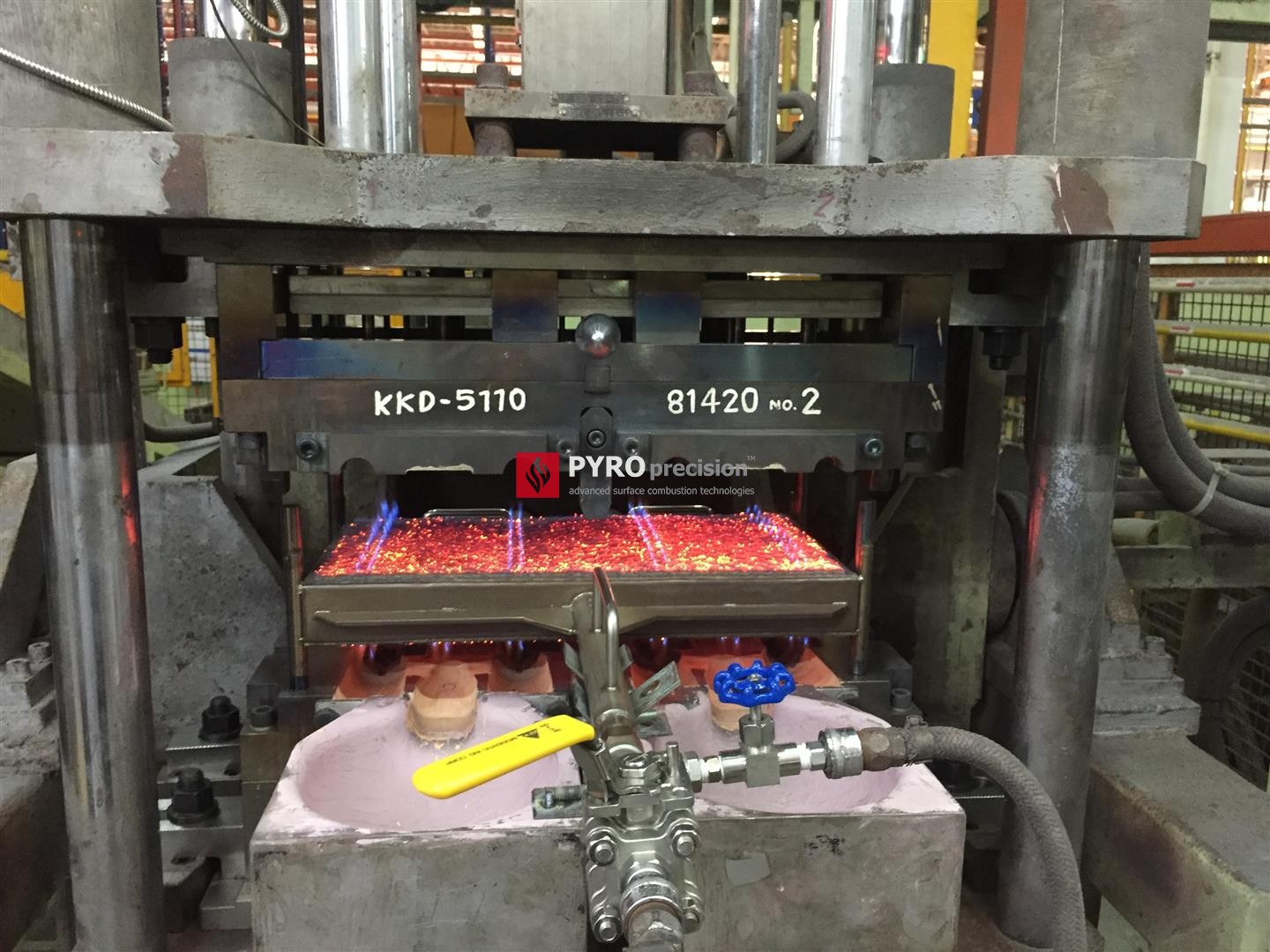

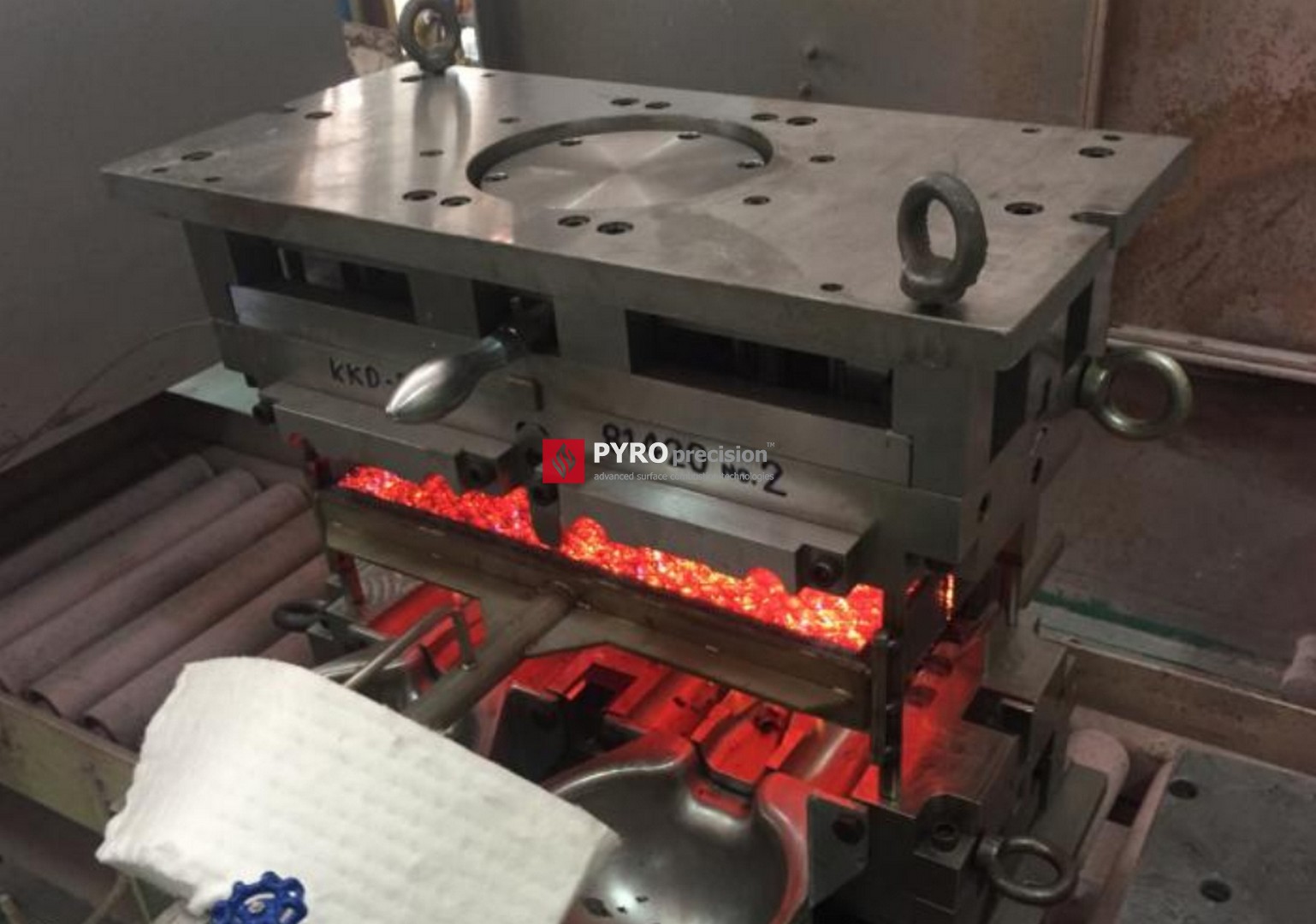

    Dual-Side Firing or DF SERIES allows for the operation of both top and bottom firing in a single burner. This offers a significant advantage for mold preheating applications that require flames at both the top and bottom of the gravity or low pressure dia casting machine.

_______________________________________________________

 Using an IR-RED ® FLAM infrared gas burner for preheating moldscan offer several benefits:

1. Efficient Heat Transfer : Infrared gas burners emit intense heat in the form of infrared radiation. This radiation directly heats the surface of the mold, ensuring efficient heat transfer. The focused heat from the burner can rapidly raise the mold temperature, reducing preheating time and increasing overall production efficiency.

2. Uniform Heating : Infrared gas burners provide uniform heating across the mold surface. This helps to eliminate temperature gradients within the mold, ensuring consistent and uniform heat distribution. Uniform heating is essential for achieving consistent casting quality and minimizing defects.

3. Precise Temperature Control : Infrared gas burners offer precise temperature control during the preheating process. This allows for accurate temperature management, ensuring that the mold reaches and maintains the desired preheating temperature. Precise temperature control helps to optimize casting conditions, leading to higher quality castings.

4. Reduced Energy Consumption : Infrared gas burners are known for their high energy efficiency. They convert most of the input energy into infrared radiation, minimizing heat loss. This energy efficiency can lead to lower energy consumption during the preheating process, resulting in cost savings and environmental benefits.

5. Reduced Mold Oxidation : Infrared radiation heats the mold surface without direct contact or flame impingement, reducing the risk of mold oxidation. This is particularly important for molds made of materials prone to oxidation, such as aluminum. By minimizing oxidation, the life of the mold can be prolonged, leading to cost savings and improved production efficiency.

6. Quick Start-up and Shutdown : Infrared gas burners have fast start-up and shutdown times, allowing for quick mold temperature adjustments. This flexibility is beneficial for processes that require frequent mold changes or adjustments in temperature, enabling faster production turnaround times.

All of PYROprecision's productss are manufactured in Thailand.

_______________________________________________________
ข้อมูลทางเทคนิค

KKS Code	MFB450-240-DF
Cataory	DF Series
Position	n.a.
Figure
Flame Structure	IR-RED ® FLAME -  Combustion inside a permeable medium produces generate heats to incandescent which a portion of the energy input can be released as thermal radiation. The flame colour is red/orange, and it produces extremely low emissions of NOx, CO and non-burnt fuel components. This mode occurs at low intensities of 200-500 kW/m2.
Application	- Preheating molds for aluminum castings - Reduce preheat gas consumption in gravity process
Online Info	https://www.ppinfrared.com/df-series-burners

_______________________________________________________

ดาวน์โหลด

แคตตาล๊อกสินค้า MFB Burner : Click Here
