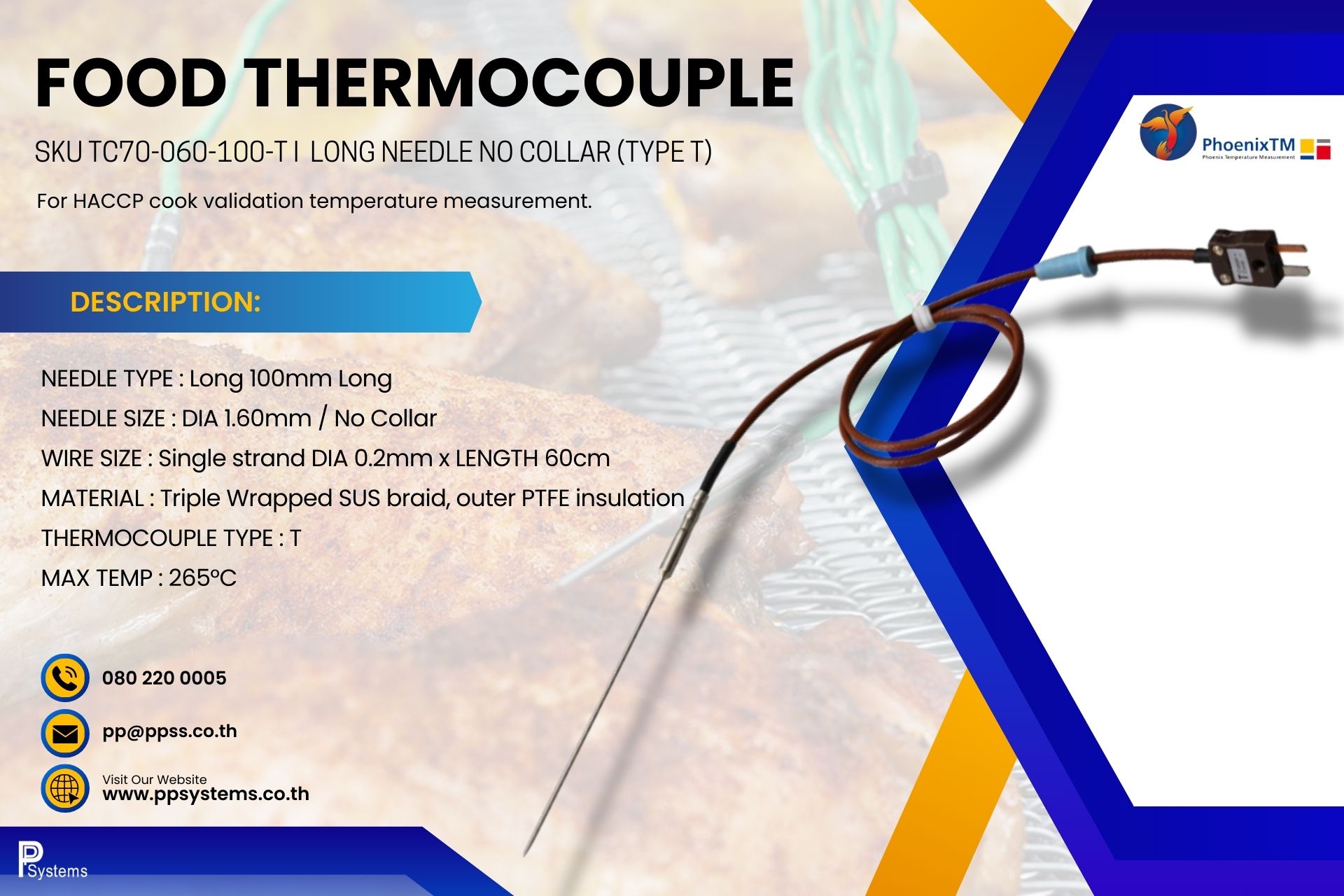

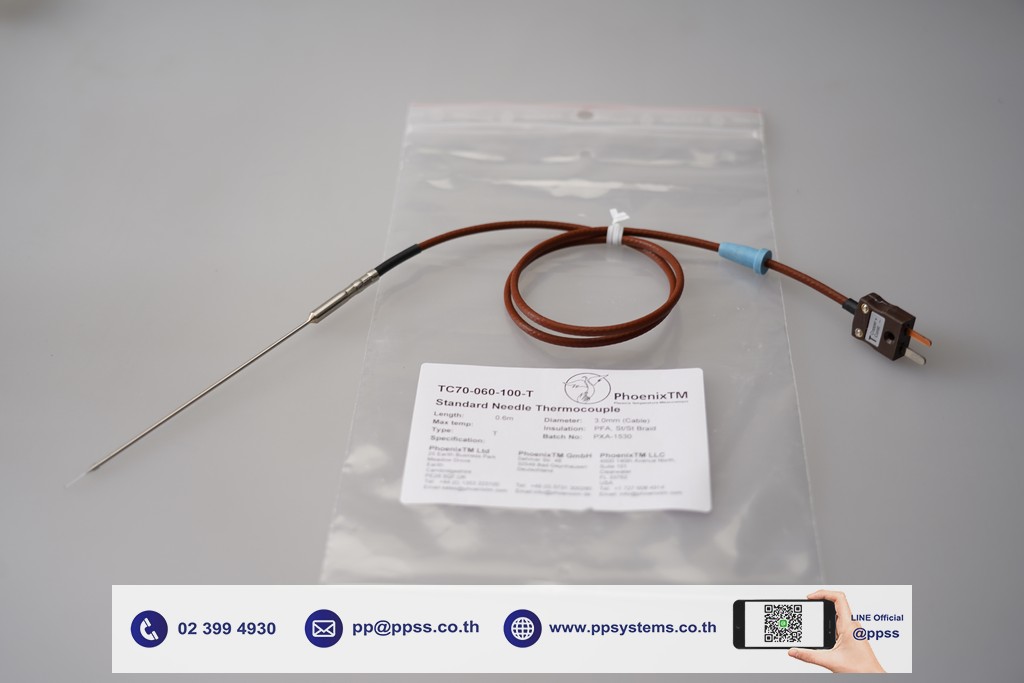

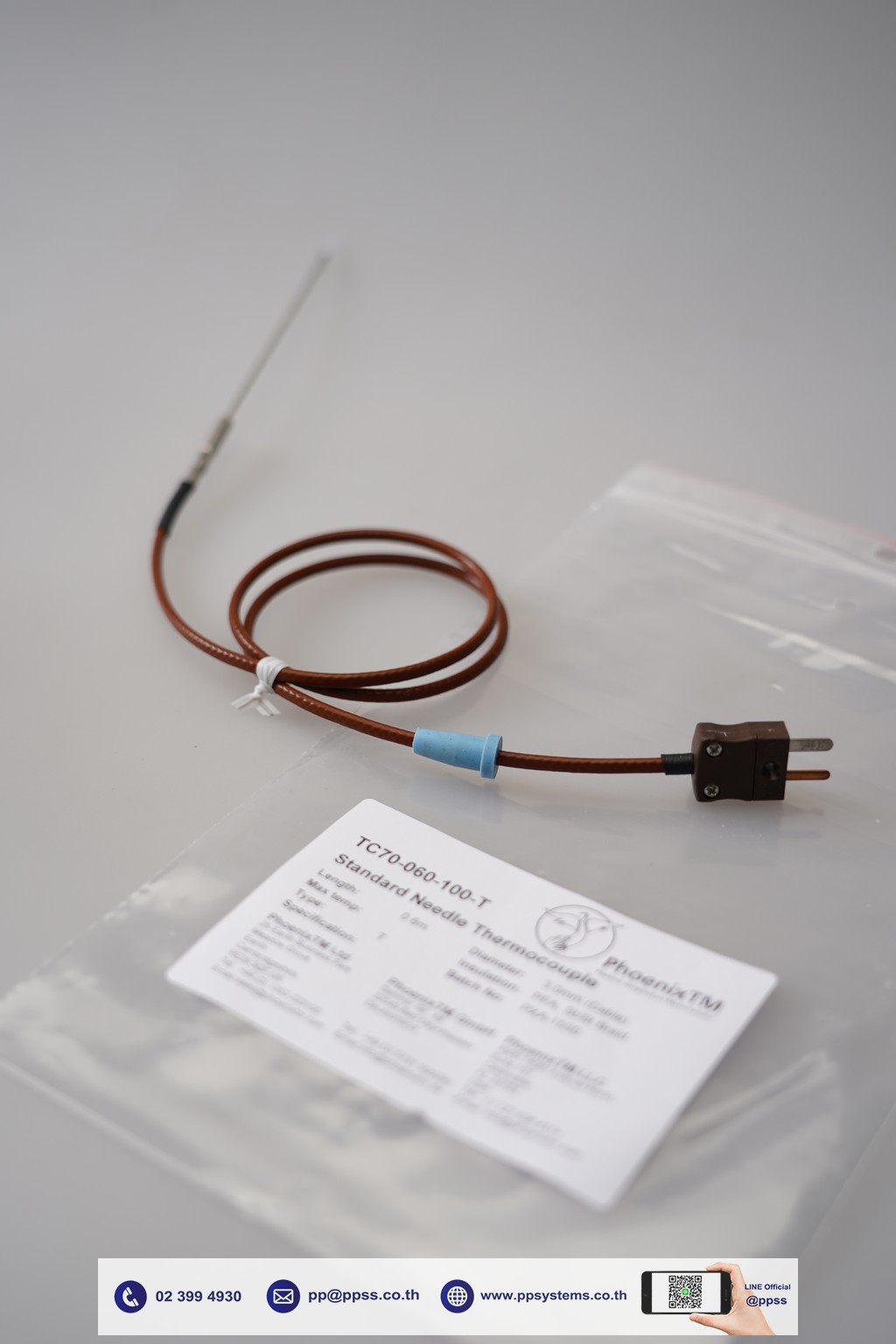

[TC70-060-100-T] PHOENIXTM Long Needle Thermocouple, Diameter 1.6mm / 100mm Long, Type T - 0.6m long

PHOENIXTM Long Needle Thermocouple, Diameter 1.6mm / 100mm Long, Type T - 0.6m long l สายเทอร์โมคัปเปิ้ล สายวัดอุณหภูมิแบบเข็ม Type T

For use in the Food market to comply with HACCP criteria it is important that the temperature profiling system is as accurate as possible. A critical part to the accuracy of the temperature measurement is the accuracy of the thermocouple. All PhoenixTM  hermocouples are manufactured to the highest quality standards and conform to either ANSIMC96.1 ‘special limits’ specification (type K) or IEC60584.2 Class 1 (type T) as detailed below. The hot junctions of all PhoenixTM thermocouples are made of food grade 316 stainless steel and offered with straight or tapered collars to help guarantee secure placement and positioning of the measurement tip in the food product being measured.

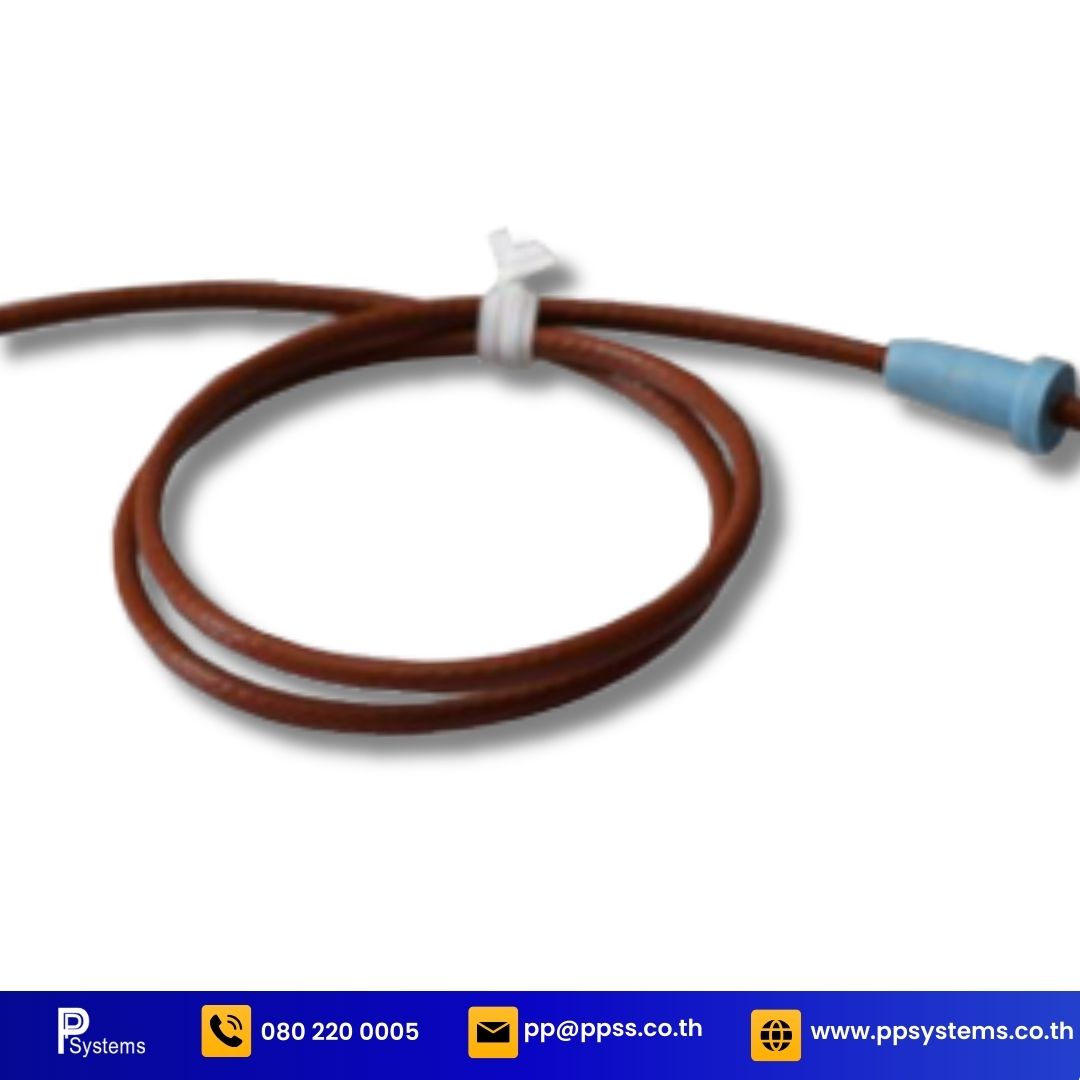

Complimenting the standard range of Type K and T thermocouples PhoenixTM now offers a new range of Type K thermocouples designed so that they can be offered with an optional thermocouple certificate of calibration. The needle probe is designed so that the inner thermocouple core wires are continuous from thermocouple plug right through to the measurement tip of the needle allowing thermocouple wire calibration data to apply to the probe measurement. The quad wrapped thermocouple cable design ensures that the thermocouple wires are protected from the hostile application conditions whilst retaining flexibility. An optional 7-point thermocouple certificate of calibration allows creation of Thermocouple Calibration Correction files in the PhoenixTM Thermal View Food Software which permits automatic thermocouple correction factors to be applied to the profile data. Combining with the application of logger correction factors ensures that the system is being used to give the most accurate measurement data possible.

Satisfy all your HACCP requirements and other regulatory requirements, specific to system and thermocouple calibration, with the new PhoenixTM type K Food Needle Thermocouples (TC71) used in conjunction with PhoenixTM data logger and Thermal View Food Software. All Phoenix TM thermocouples are manufactured to the highest quality standards as the following

The insulation material and the plug terminations are color coded to conform to the IEC 60584 standard.

Short Needle 45mm

TC71-040-045-K  l  Short Needle Thermocouple, Diameter 1.85mm to 1.3mm / 45mm Long, Type K - 0.4m long

TC71-050-045-K  l  Short Needle Thermocouple, Diameter 1.85mm to 1.3mm / 45mm Long, Type K - 0.5m long

TC71-060-045-K  l  Short Needle Thermocouple, Diameter 1.85mm to 1.3mm / 45mm Long, Type K - 0.6m long

TC71-040-045-KT  l  Short Needle Thermocouple, Taper Collar, Diameter 1.85mm to 1.3mm / 45mm Long, Type K - 0.4m long

TC71-050-045-KT  l  Short Needle Thermocouple, Taper Collar, Diameter 1.85mm to 1.3mm / 45mm Long, Type K - 0.5m long

TC71-060-045-KT l  Short Needle Thermocouple, Taper Collar, Diameter 1.85mm to 1.3mm / 45mm Long, Type K - 0.6m long

TC71-040-045-KT-X  l  Short Needle Thermocouple, Taper Collar, Diameter 1.85mm to 1.3mm / 45mm Long, Type K - 0.4m long

TC71-050-045-KT-X  l  Short Needle Thermocouple, Taper Collar, Diameter 1.85mm to 1.3mm / 45mm Long, Type K - 0.5m long

TC71-060-045-KT-X  l  Short Needle Thermocouple, Taper Collar, Diameter 1.85mm to 1.3mm / 45mm Long, Type K - 0.6m long

* All PhoenixTM thermocouple part number end by alphabet of 'X' will be supplied with calibration certificate for 7 point roll calibration at -50°C, -18°C, 0°C, 75°C, 100°C, 180°C and 250°C.

Medium Needle 60mm

TC71-040-060-K  l  Short Needle Thermocouple, Diameter 1.85mm to 1.3mm / 60mm Long, Type K - 0.4m long

TC71-050-060-K  l  Short Needle Thermocouple, Diameter 1.85mm to 1.3mm / 60mm Long, Type K - 0.5m long

TC71-060-060-K  l  Short Needle Thermocouple, Diameter 1.85mm to 1.3mm / 60mm Long, Type K - 0.6m long

TC71-040-060-KT  l  Short Needle Thermocouple, Taper Collar, Diameter 1.85mm to 1.3mm / 60mm Long, Type K - 0.4m long

TC71-050-060-KT  l  Short Needle Thermocouple, Taper Collar, Diameter 1.85mm to 1.3mm / 60mm Long, Type K - 0.5m long

TC71-060-060-KT l  Short Needle Thermocouple, Taper Collar, Diameter 1.85mm to 1.3mm / 60mm Long, Type K - 0.6m long

TC71-040-060-KT-X  l  Short Needle Thermocouple, Taper Collar, Diameter 1.85mm to 1.3mm / 60mm Long, Type K - 0.4m long

TC71-050-060-KT-X  l  Short Needle Thermocouple, Taper Collar, Diameter 1.85mm to 1.3mm / 60mm Long, Type K - 0.5m long

TC71-060-060-KT-X  l  Short Needle Thermocouple, Taper Collar, Diameter 1.85mm to 1.3mm / 60mm Long, Type K - 0.6m long

* All PhoenixTM thermocouple part number end by alphabet of 'X' will be supplied with calibration certificate for 7 point roll calibration at -50°C, -18°C, 0°C, 75°C, 100°C, 180°C and 250°C.

Long Needle 100mm

TC71-040-100-K  l  Short Needle Thermocouple, Diameter 1.85mm to 1.3mm / 100mm Long, Type K - 0.4m long

TC71-050-100-K  l  Short Needle Thermocouple, Diameter 1.85mm to 1.3mm / 100mm Long, Type K - 0.5m long

TC71-060-100-K  l  Short Needle Thermocouple, Diameter 1.85mm to 1.3mm / 100mm Long, Type K - 0.6m long

TC71-040-100-KT  l  Short Needle Thermocouple, Taper Collar, Diameter 1.85mm to 1.3mm / 100mm Long, Type K - 0.4m long

TC71-050-100-KT  l  Short Needle Thermocouple, Taper Collar, Diameter 1.85mm to 1.3mm / 100mm Long, Type K - 0.5m long

TC71-060-100-KT l  Short Needle Thermocouple, Taper Collar, Diameter 1.85mm to 1.3mm / 100mm Long, Type K - 0.6m long

TC71-040-100-KT-X  l  Short Needle Thermocouple, Taper Collar, Diameter 1.85mm to 1.3mm / 100mm Long, Type K - 0.4m long

TC71-050-100-KT-X  l  Short Needle Thermocouple, Taper Collar, Diameter 1.85mm to 1.3mm / 100mm Long, Type K - 0.5m long

TC71-060-100-KT-X  l  Short Needle Thermocouple, Taper Collar, Diameter 1.85mm to 1.3mm / 100mm Long, Type K - 0.6m long

* All PhoenixTM thermocouple part number end by alphabet of 'X' will be supplied with calibration certificate for 7 point roll calibration at -50°C, -18°C, 0°C, 75°C, 100°C, 180°C and 250°C.

Mineral Insulated Thermocouple

TC22-015-K  l  Mineral Insulated Thermocouple, Ultra-High Temperaturealloy (UHT Alloy) Type K 1.6mm, Max Temperature 1200°C - 0.15m long

TC22-020-K  l  Mineral Insulated Thermocouple, Ultra-High Temperaturealloy (UHT Alloy) Type K 1.6mm, Max Temperature 1200°C - 0.20m long

TC22-030-K  l  Mineral Insulated Thermocouple, Ultra-High Temperaturealloy (UHT Alloy) Type K 1.6mm, Max Temperature 1200°C - 0.30m long

TC22-040-K  l  Mineral Insulated Thermocouple, Ultra-High Temperaturealloy (UHT Alloy) Type K 1.6mm, Max Temperature 1200°C - 0.40m long

TC22-050-K  l  Mineral Insulated Thermocouple, Ultra-High Temperaturealloy (UHT Alloy) Type K 1.6mm, Max Temperature 1200°C - 0.50m long

TC22-060-K  l  Mineral Insulated Thermocouple, Ultra-High Temperaturealloy (UHT Alloy) Type K 1.6mm, Max Temperature 1200°C - 0.60m long
